H16.00–18.00XM(S)–12 Series High Capacity Forklifts

Type:container handlers


Power:Internal Combustion

Max Capacity:18 tonne

The H18.00-16.00XM(S)-12 high capacity forklift series has four models, two engine power-outputs and a wide range of standard and optional features.

This series is one of the most compact heavy duty forklifts available on the market, enabling you to easily determine the right solution for your application needs.

The series is available with a modern clean-running diesel engine, standard oil-immersed brakes, robust drive-axle and advanced auto-shift transmission, which all combine to maintain maximum productivity and reliability during operation in demanding applications.


  • Engine and transmission protection systems as well as oil-immersed brakes are standard to ensure reliable operation.
  • Hyster “Vista” cab, offers an outstanding range of standard ergonomic features, plus excellent all-round visibility, to ensure ease of operation.
  • High performance and efficient hydraulics and a powerful powertrain, offering class leading mast lift speeds for fast, efficient handling.
  • Short wheelbase models are ideal for applications where operating space is restricted and are the most compact machines in the industry.

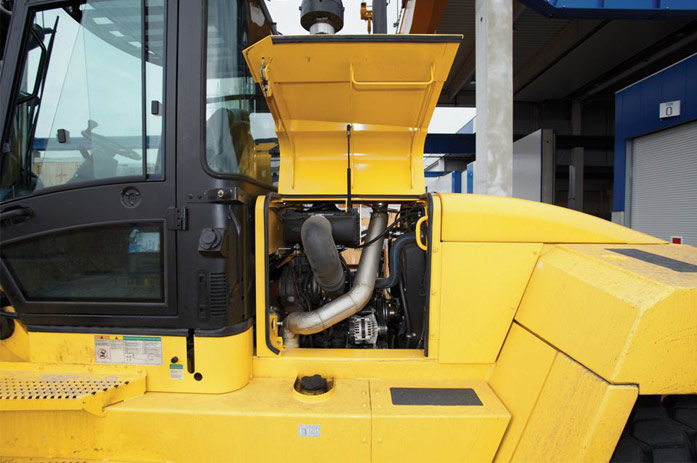

  • An engine shutdown function and tilting cab for easy service access minimise service time and cost.

Request brochure (PDF)

H16.00XMS-12 H16.00XM-12 H18.00XMS-12 H18.00XM-12
Load Capacity (kg) 16,000 16,000 18,000 18,000
Load Centre (mm) 1200 1200 1200 1200
Lift Height (mm) 5400 5400 5400 5400
Engine Type Cummins QSB6.7 Cummins QSB6.7 Cummins QSB6.7 Cummins QSB6.7
Transmission SOH TE-13 3-speed AutoshiftSOH TE-13 3-speed AutoshiftSOH TE-13 3-speed AutoshiftSOH TE-13 3-speed Autoshift

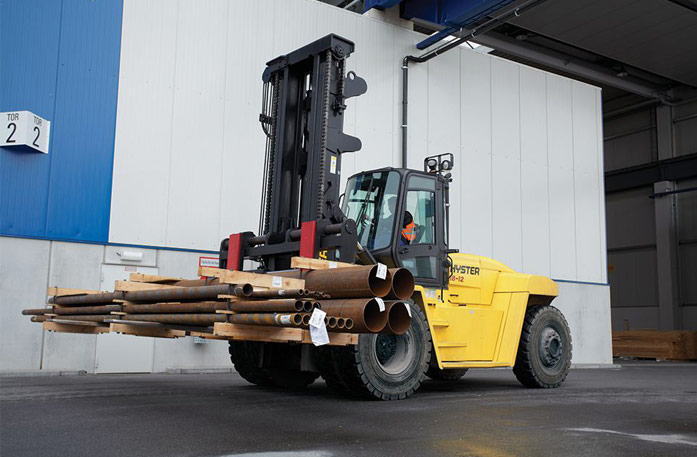

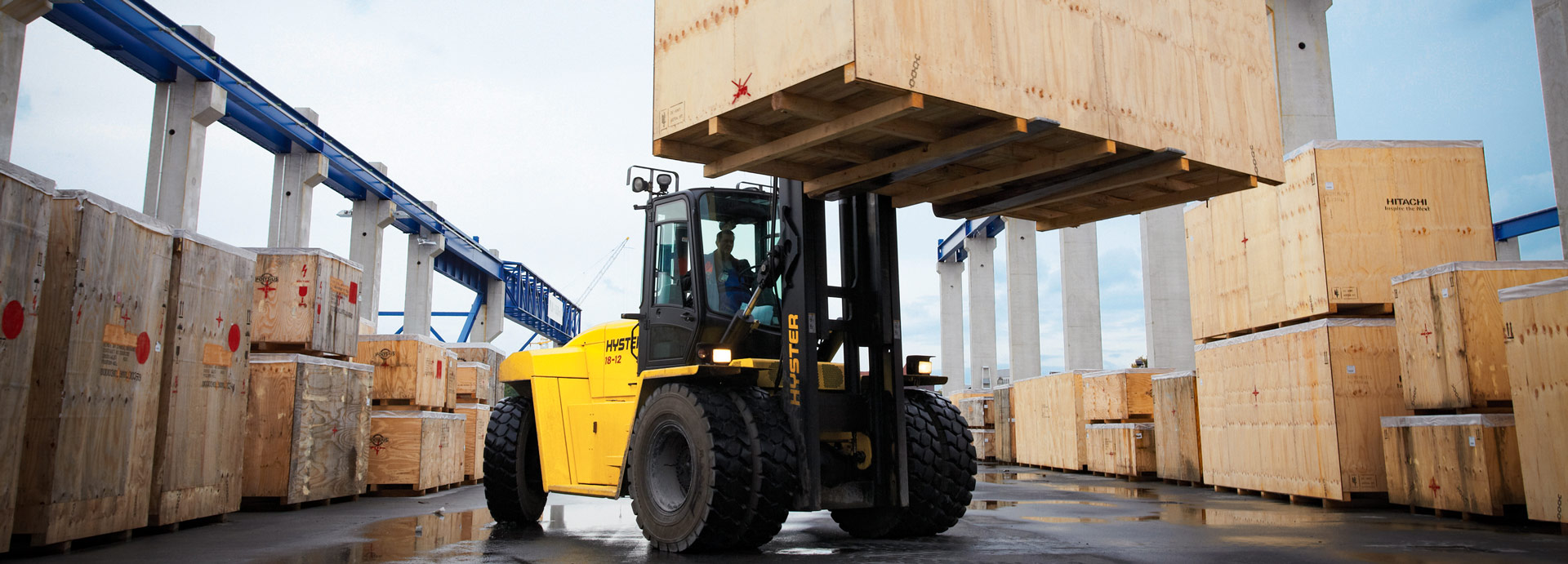

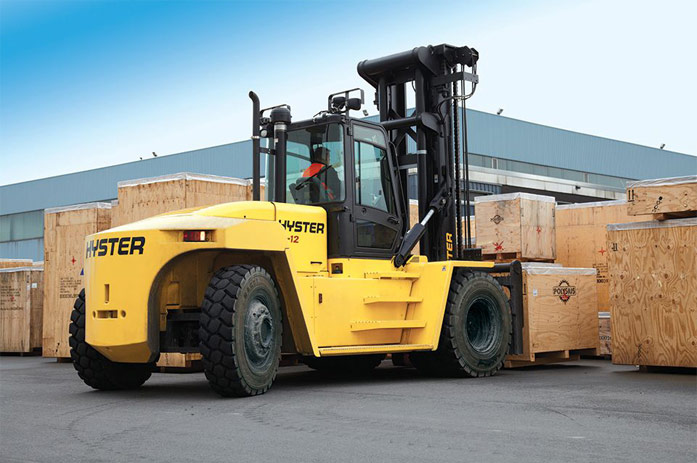

product action shot
