H16.00–22.00XM–12EC Series Container Handlers

Type:container handlers

Make:hyster

Power:Internal Combustion

Max Capacity:9 tonne

The H16.00-22.00XM-12EC Series Empty Container Handlers features exceptionally strong mast and frame design to facilitate empty container handling operations up to eight high in a single stack, delivering an effective solution for high density empty container storage applications.

The series is available with a modern clean-running Diesel engine, standard oil-immersed brakes, robust drive-axle and advanced auto-shift transmission, which all combine to maintain maximum productivity and reliability during operation in demanding applications.

  • Engine and transmission protection systems are standard to ensure reliable operation.
  • The rear-mounted Hyster “Vista” cab, offers an outstanding range of standard ergonomic features, plus excellent container visibility at all times.
  • 8-high container stacking capability thanks to 2-on-6 handling option with hooks and sideclamps or double-horizontal twistlocks feature on the spreader.
  • High performance and efficient hydraulics and a powerful powertrain, offering class leading mast lift speeds for fast, efficient handling.
  • An engine shutdown function and tilting cab for easy service access minimise service time and cost.


H16.00XM-12EC H18.00XM-12EC H22.00XM-12EC
Load Capacity (kg) 7,000 7,000 – 8,500 9,000
Load Centre (mm) 1200 1200 1200
Lift Height (mm) 13850 16850 13850 / 16850
Engine Type Cummins QSB 6Cummins QSB 6Cummins QSB 6 / QSM11
Transmission SOH TE17 3-sp AutoshiftSOH TE17 3-sp AutoshiftSOH TE17 3-sp Autoshift

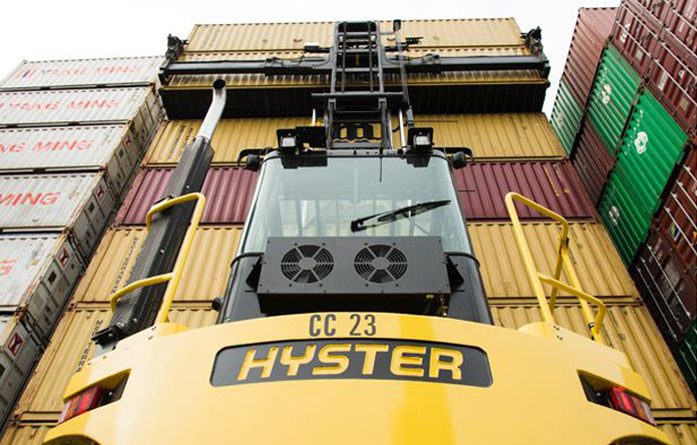

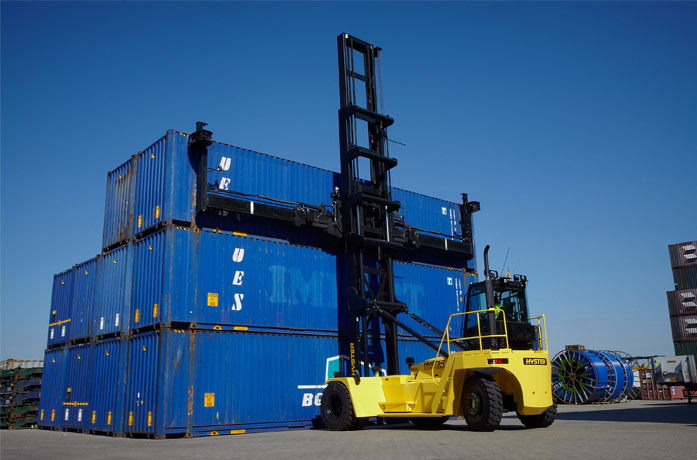

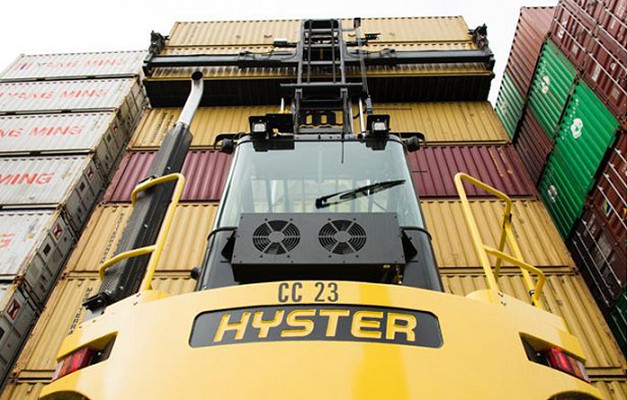

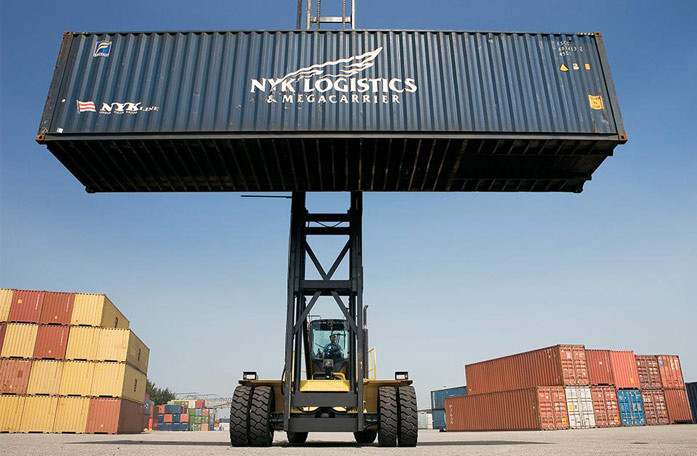

product action shot
