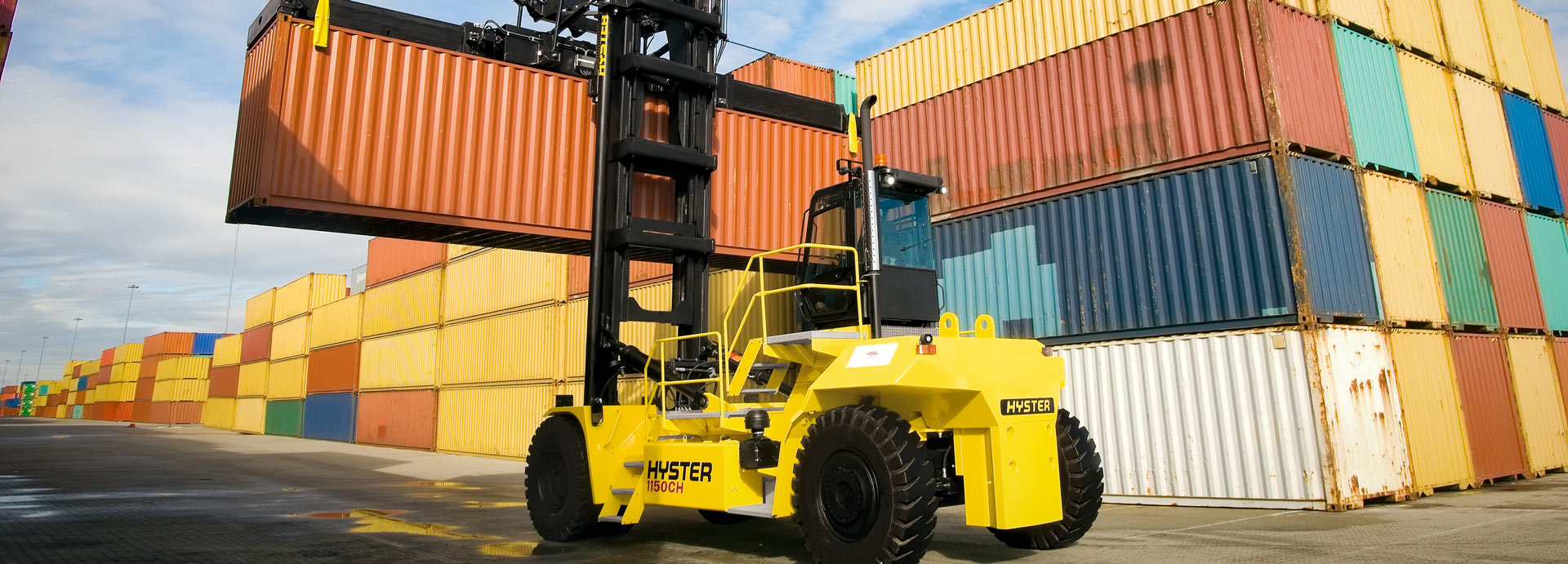

H40.00–50.00XM–16CH Series Container Handlers

Type:container handlers


Power:Internal Combustion

Max Capacity:50 tonne

A First Row Container Handler, for stacking laden containers 3, 4 & 5 high, the H40.00-50.00XM-16CH series Laden Container Handlers are able to perform container shunting operations at exceptional speeds. This truck has been purposely developed to deliver these high ‘box-rates’ to offer an alternative cost-effective solution to customers, when 2nd / 3rd row storage is not required.

The series is available with a modern clean-running Diesel engine, standard oil-immersed brakes, robust drive-axle and advanced auto-shift transmission, which all combine to maintain maximum productivity and reliability during operation in demanding applications.

  • Engine and transmission protection systems as well as oil-immersed brakes are standard to ensure reliable operation.
  • The rear mounted Hyster “Vista” cab, offers an outstanding range of standard ergonomic features, plus excellent container visibility at all times.
  • The Hyster designed “Vista” mast, the supremely simple Dedicated Carriage and the container spreader are proven components.
  • Fast spreader (dis)engagement to/from containers is enhanced by the spreader’s floating twistlocks, free mechanical articulation and sideshift movement.
  • An engine shutdown function and easy service access minimise service time and cost.

Request brochure (PDF)

H40.00XM-16CH H44.00XM-16CH H48.00XM-16CH H50.00XM-16CH
Load Capacity (kg) 35,300 39,300 38,340 40,000
Load Centre (mm) 1,600 1,600 1,600 1,600
Lift Height (mm) 9,755 9,755 12,65012,650
Engine Type Cummins QSM 11Cummins QSM 11Cummins QSM 11Cummins QSM 11
Transmission SOH TE27 4-sp AutoshiftSOH TE27 4-sp AutoshiftSOH TE27 4-sp AutoshiftSOH TE27 4-sp Autoshift

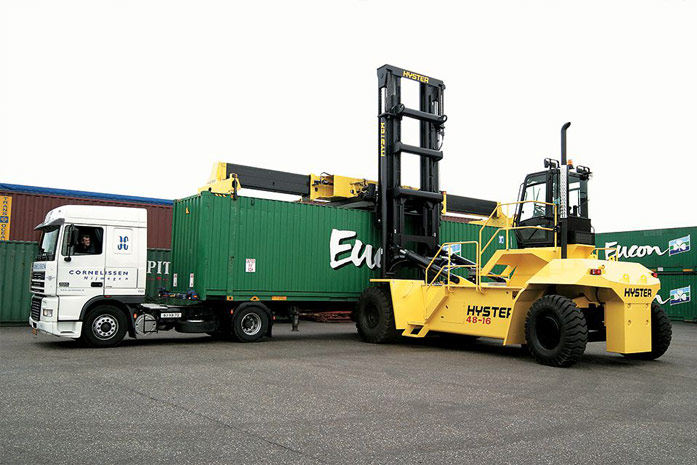

product action shot

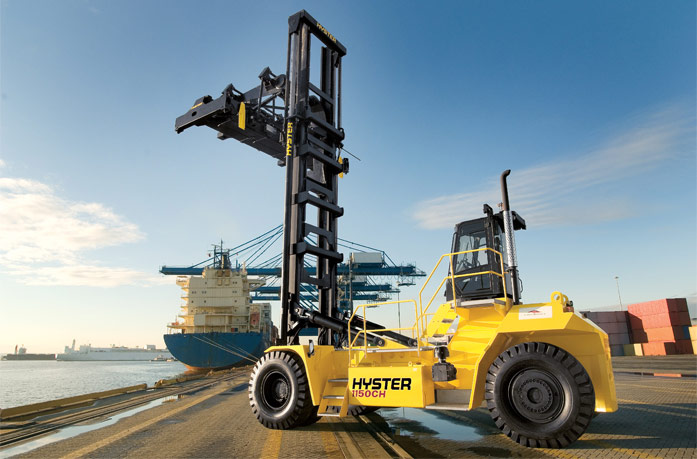

product action shot

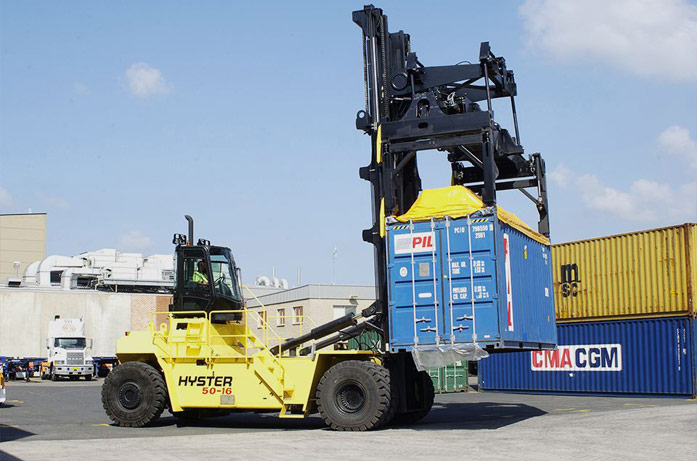

product action shot
