Type:high capacity

Make:hyster

Power:Internal Combustion

Max Capacity:11 tonne

The new Hyster® empty container handlers are designed to perform and last, even while handling heavy or offset double container loads.

Ranging from 8 tonnes up to 11 tonnes capacity, there are nine models available in the H8XD-EC6 – H11XD-ECD9 series. This includes four single container handlers for up to 8 high and five double container handlers for up to 9 high.

High operation speeds – boost productivity

  • Achieve power and speed in every lift thanks to the reliable and fine-tuned Cummins QSB 6.7L engine (Stage IV or Stage IIIA)
  • Operators have superb control when approaching loads with the smooth shifting and inching of the 5-speed forward / 3-speed reverse hydrodynamic transmission by ZF
  • Balance productivity and fuel economy levels – using the selectable ECO modes (eLo and Hi-P) – available on Stage IV Hyster® empty container handlers. Choose the right mode for maximum productivity or for excellent fuel economy

The right spreader for your operation

  • Choosing the right spreader is key to cost effective container handling. If you don’t double pick yet, you could even discover a new, more efficient container handling approach utilising the right Hyster® spreader for your operation
  • A comprehensive selection of single and double handling spreaders are available to suit specific needs featuring vertical twistlocks, hook & side clamps and horizontal twistlocks
  • A variety of different container sensing systems are available

For the operator

  • Operators can find their best position with the adjustable seat and steering column
  • Truck parameters can be easily checked and adjusted via the digital display
  • The operator cabin, open mast design, and smart placement of components provide 360-degree visibility
  • The innovative spreader design enables the operator to see the twistlocks or hooks in every load position and includes ‘reefer correction’ sideshift to easily reposition offset loads
  • CANbus control and digital operator display with twist lock indication, make it easy and efficient for the operator to lock the load.

Type:high capacity

Make:hyster

Power:Internal Combustion

Max Capacity:11 tonne

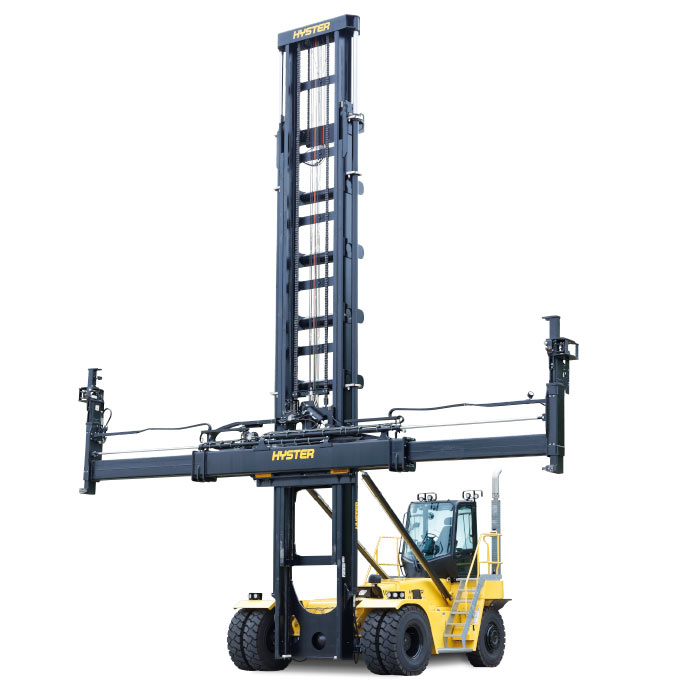

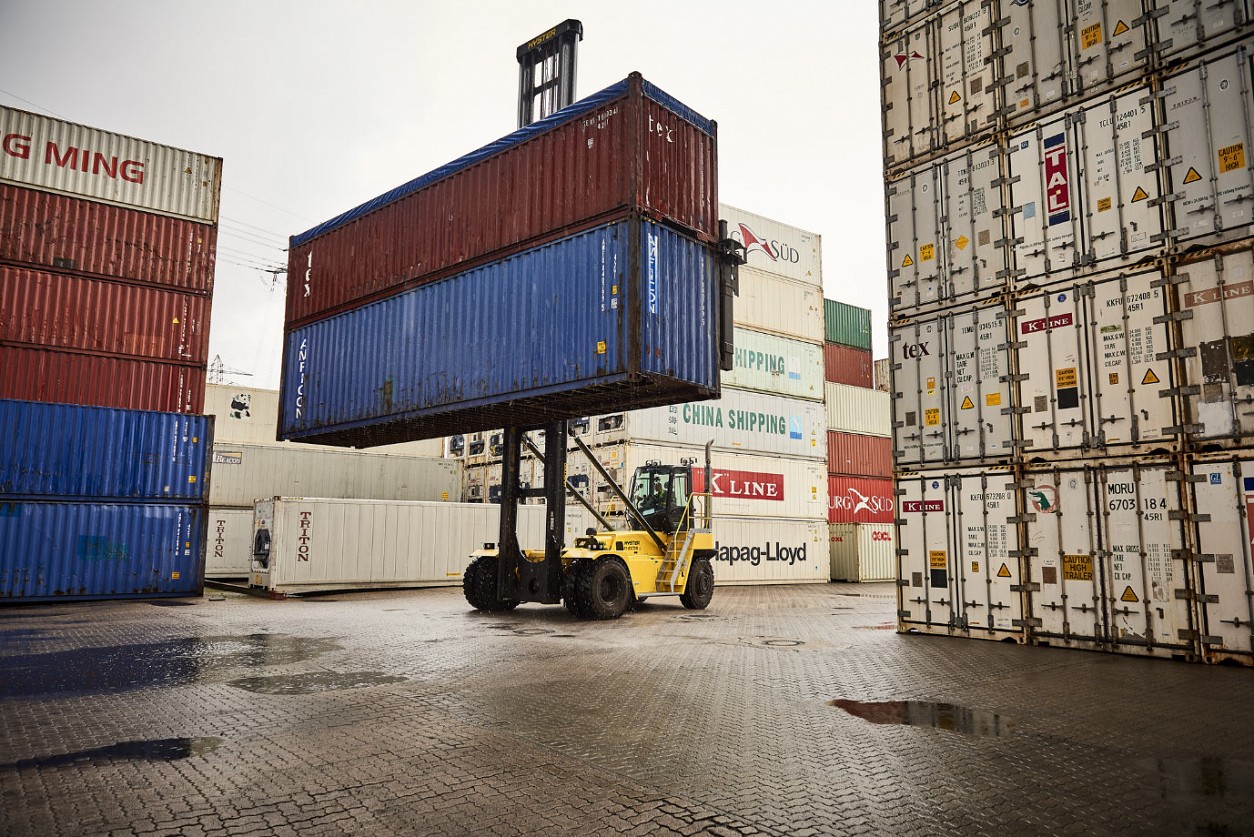

Hyster H8XD EC6 Empty Container Handler solo Hyster H8XD EC6 Empty Container Handler action4

Fuel savings & low noise levels

  • Well-tuned and fuel efficient powertrain lowers fuel consumption
  • Smart features such as on-demand hydraulics, on-demand cooling and selectable performance modes also contribute to fuel savings, extended component life and reduced noise levels.

Excellent stability

  • Whether you choose a standard or wide drive axle configuration, combined with the robust Hyster® steer axle you’ll get excellent stability in all empty container stacking applications.

Durability as standard

  • Hyster® container handlers are designed and built to perform and last in the toughest container yards, offering effortless handling, every day
  • The robust and heavy-duty core of the machine is capable of lifting two 40ft reefers at once, even with both cooling units on the same side
  • The high strength mast accommodates heavier weights and can handle net loads of up to 11 tonnes
  • For optimal performance and durability, the variable lap mast features a heavy duty 2 over 1 chain system, this new design enhances structural strength and significantly improves chain life, contributing to lower costs and reducing downtime.

Easy service for more uptime

  • Not only will you move more in less time, with Hyster® empty container handlers you’ll also notice longer service life of components, and less downtime due to unplanned repair needs
  • Reliable, quality components
  • Daily checks and servicing are completed with ease
  • Minimum 500hr+ service interval (extended 10.000 hr service interval for the hydraulic oil using regular oil sampling)
  • Tilting cab for easy access to components

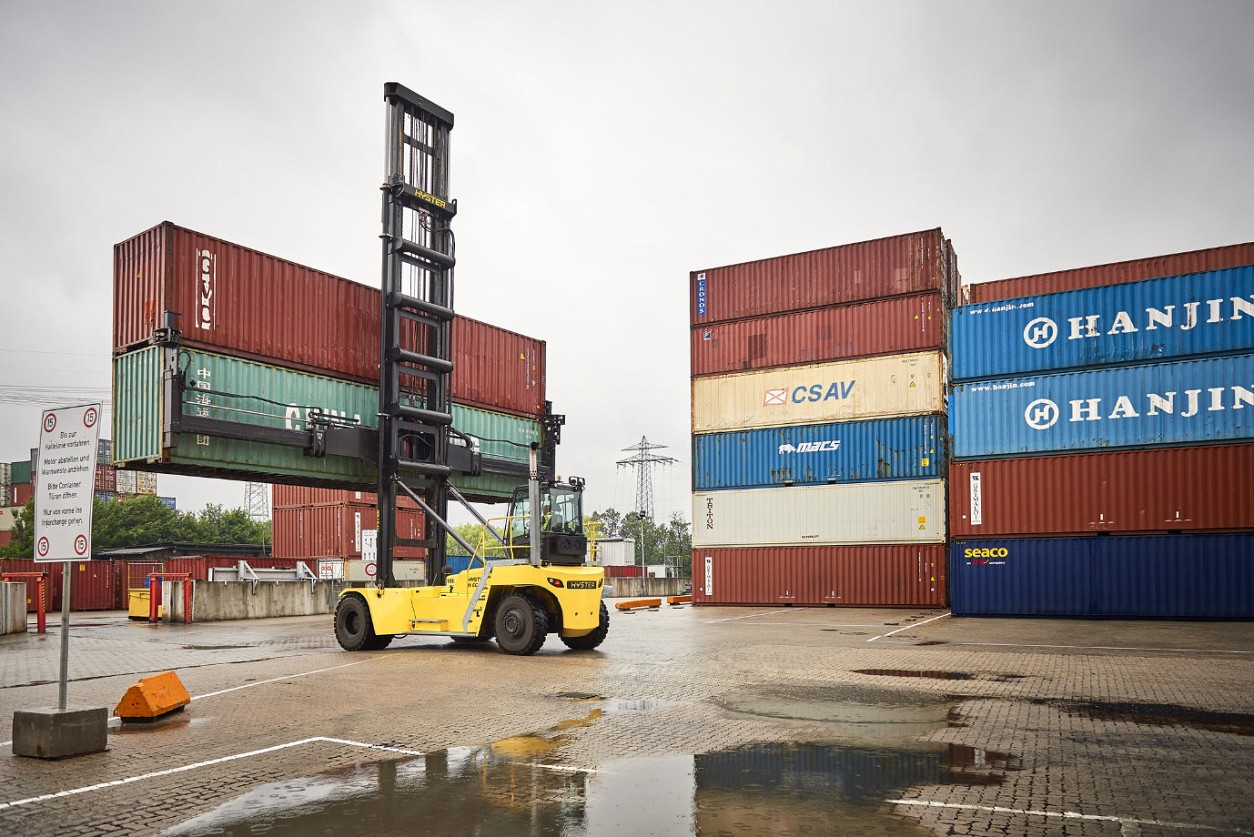

Hyster H8XD EC6 Empty Container Handler action2

Tailor the truck for your specific requirements with additional options:

  • Smart camera systems can display key areas
  • Optional double-line automatic greasing system means even less service required
  • Auto extend-retract feature further assists operators by adjusting the spreader to a 20ft or 40ft container size at the touch of a button
  • Forktrack telematics helps manage your empty container handler more effectively to maximize uptime and productivity, eliminate bottlenecks and minimize cost
  • A choice of standard or raised height cab makes picking and loading more containers per hour a breeze
  • With high-stacking masts, you can optimise the vantage point with optional automatic cab tip-up cab to provide greater operator comfort when stacking containers above 4 high

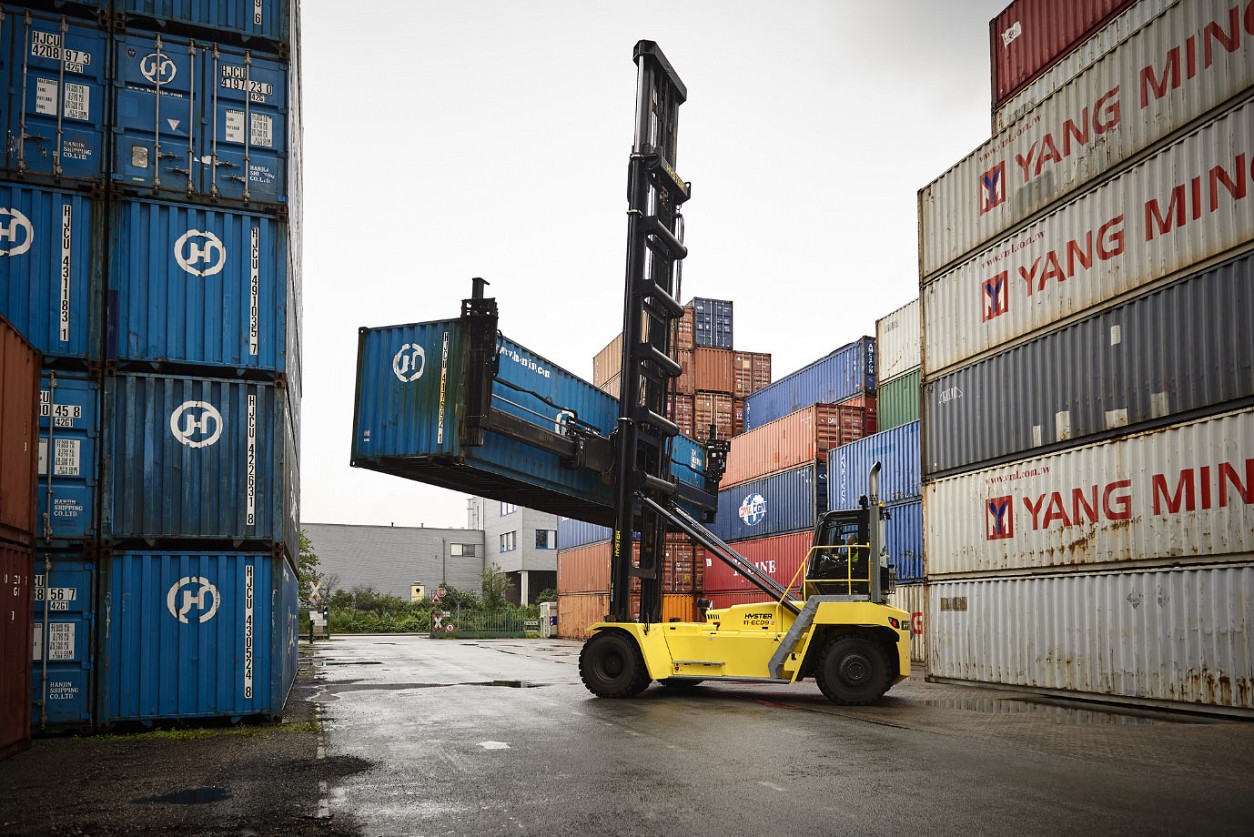

Hyster H8XD EC6 Empty Container Handler action1

Request brochure (PDF)

H8XM-EC6 H8XM-EC7 H9XM-EC7 H9XM-EC8 H9XM-ECD7 H9XM-ECD8 H10XM-ECD8 H11XM-ECD8 H11XM-ECD9
Load Capacity (kg) 8,000 8,000 9,000 9,000 9,000 9,000 10,000 11,000 11,000
Load Centre (mm) 1,220 1,220 1,220 1,220 1,220 1,220 1,220 1,220 1,220
Maximum Lift Height (mm) 16,200 18,800 18,800 21,400 16,320 18,920 18,920 18,920 21,520
Engine Type Cummins QSB 6.7L Diesel 168kW / 164 kW Cummins QSB 6.7L Diesel 168kW / 164 kW Cummins QSB 6.7L Diesel 168kW / 164 kW Cummins QSB 6.7L Diesel 168kW / 164 kW Cummins QSB 6.7L Diesel 168kW / 164 kW Cummins QSB 6.7L Diesel 168kW / 164 kW Cummins QSB 6.7L Diesel 168kW / 164 kW Cummins QSB 6.7L Diesel 168kW / 164 kW Cummins QSB 6.7L Diesel 168kW / 164 kW
Transmission ZF 5WG211 5-speed Hydrodynamic Transmission ZF 5WG211 5-speed Hydrodynamic Transmission ZF 5WG211 5-speed Hydrodynamic Transmission ZF 5WG211 5-speed Hydrodynamic Transmission ZF 5WG211 5-speed Hydrodynamic Transmission ZF 5WG211 5-speed Hydrodynamic Transmission ZF 5WG211 5-speed Hydrodynamic Transmission ZF 5WG211 5-speed Hydrodynamic Transmission ZF 5WG211 5-speed Hydrodynamic Transmission
Stacking Height 1st Row 5 / 6 6 / 7 6 / 7 7 / 8 5+1 / 6+1 6+1 / 7+1 6+1 / 7+1 6+1 / 7+1 7+1 / 8+1
