Type:high capacity

Make:hyster

Power:Internal Combustion

Max Capacity:45 tonne

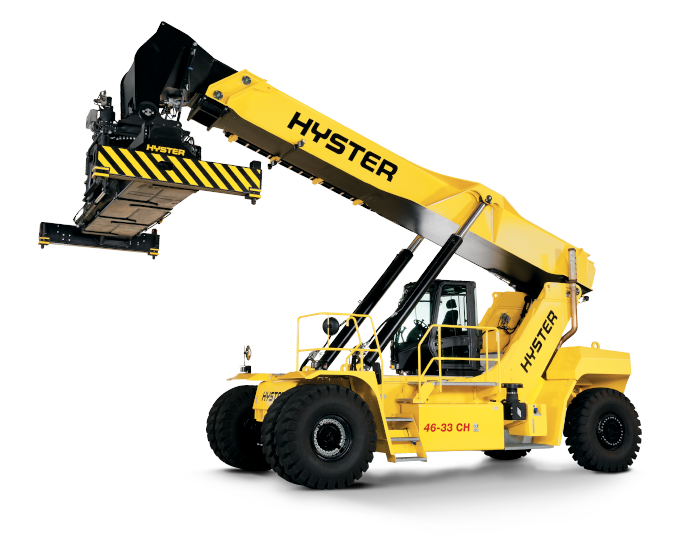

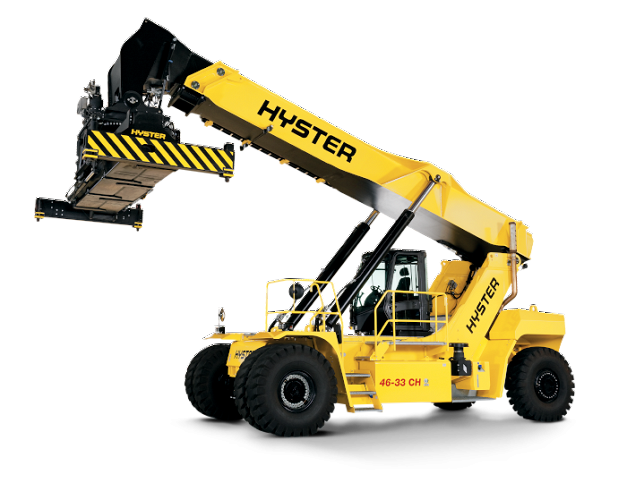

The Hyster Reach Stackers are available in both container handling (CH) and intermodal handling (IH) versions for high density container stacking applications up to 5-high and 3-rows deep. This machine has been designed to achieve maximum space utilisation on container terminals, thanks to outstanding manoeuvrability, superior handling speeds and unrestricted stacking capabilities, in an all-in-one package.

The series is available with a modern clean-running Diesel engine, standard oil-immersed brakes, robust drive-axle and advanced auto-shift transmission, which all combine to maintain maximum productivity and reliability during operation in demanding applications.

  • Engine and transmission protection systems as well as oil-immersed brakes are standard to ensure reliable operation.
  • The Hyster “Vista” cab, offers an outstanding range of standard ergonomic features, plus a sliding mechanism as standard for optimum container visibility in varying operating conditions.
  • The hydraulic system is highly efficient, and features ‘Power on Demand’ and ‘Two-Speed Lift’ functions, delivering class leading lifting speeds.
  • Increased capacity handling available thanks to models available with stabilisers and/or increased wheelbase.
  • Immensely strong frame and boom construction to handle the high capacity handling operation.
  • An engine shutdown function and easy service access minimise cost and service time.

Type:high capacity

Make:hyster

Power:Internal Combustion

Max Capacity:45 tonne

ModelLoad Capacity (kg)Load Centre (mm)Lift Height (mm)EngineTransmissionStacking Height 1st RowStacking Height 2nd RowStacking Height 3rd RowLoad Capacity (kg) 1st RowLoad Capacity (kg) 2nd RowLoad Capacity (kg) 3rd Row
RS45-27 CH45000156515150Cummins / QSL9 227KWS.O.H. / TE-27 4-Speed Transmission5 / 55 / 43 / 3450002700012300
RS45-31 CH45000156515150Cummins / QSL9 227KWS.O.H. / TE-27 4-Speed Transmission5 / 55 / 43 / 3450003100015000
