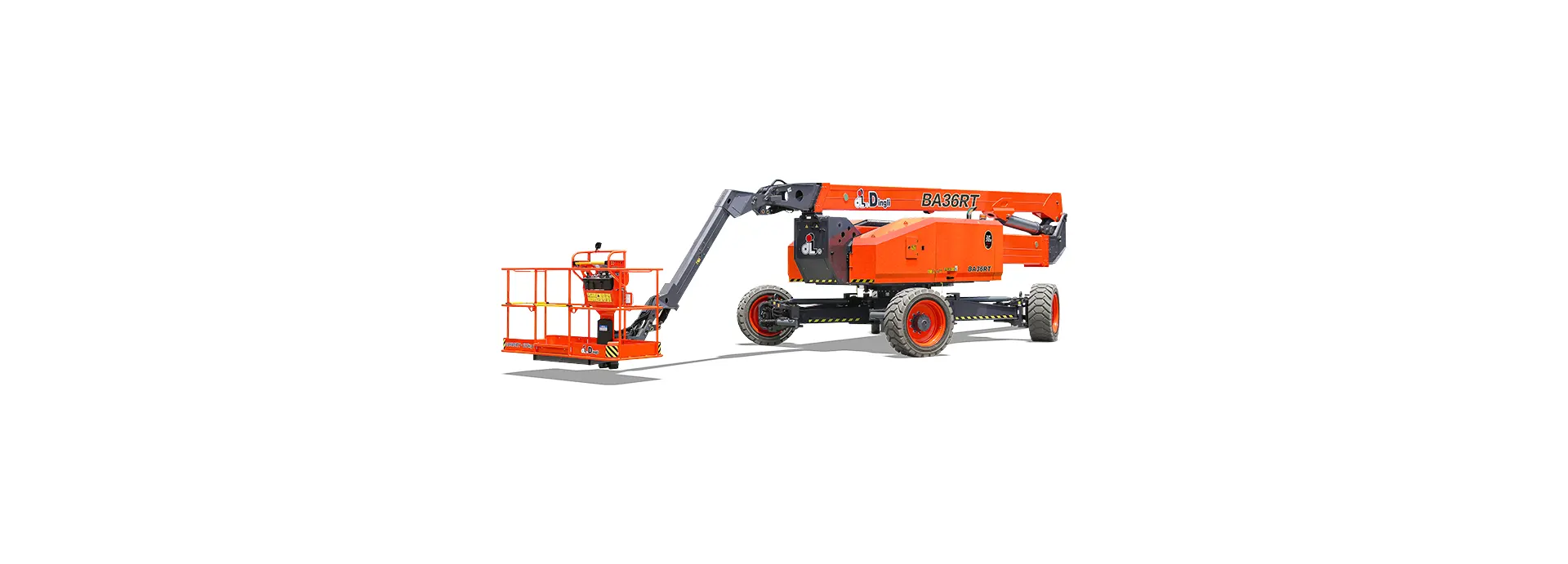

Dingli BA36RT Modular Boom Series

Dingli BA36RT Modular Boom Series
Dingli BA36RT Modular Boom Series
Dingli BA36RT
Dingli BA36RT
Dingli BA36RT

Type:boom lift

Make:dingli

Power:Electric or Internal Combustion

Max Height:34.2 metres

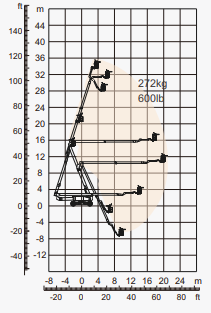

Dingli’s BA36RT combustion engine straight boom lift has a maximum platform height of 34.20m providing a maximum working height of 36.20m with an operating range of 19.20m.

The platform can accommodate up to 2 occupants with a S.W.L of 272kg.

T Series Highlights

● Developed by TEUPEN, DINGLI’s German R&D center.
● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform.
● Patented innovation of one key in-situ axle expansion, four-wheel drive & steering, axle expansion & retraction in narrow space at will.
● 40% increase in action efficiency compare with equivalent products in the industry.
● Cat3 safety architecture, full redundancy of electronic control software & hardware.
● Jib with 230°amplitude, which can be hooked back to suit standard container transport.
● Equipped with 55.4kw high power engine, gradeability up to 45%.

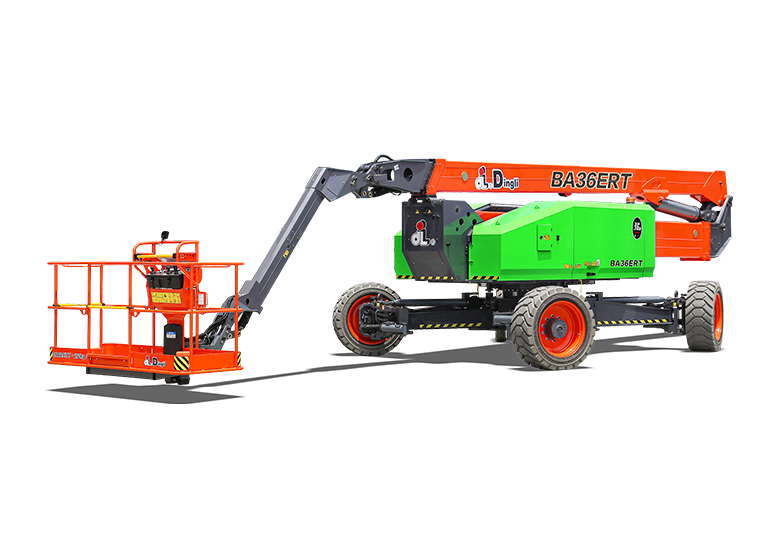

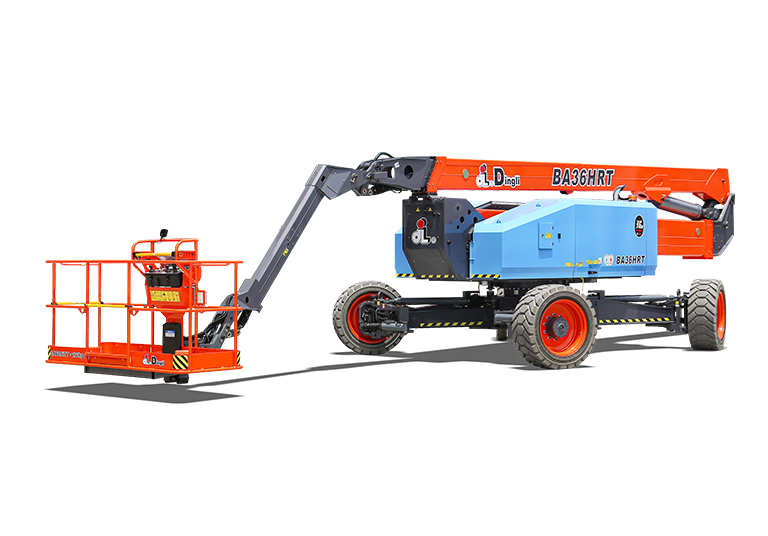

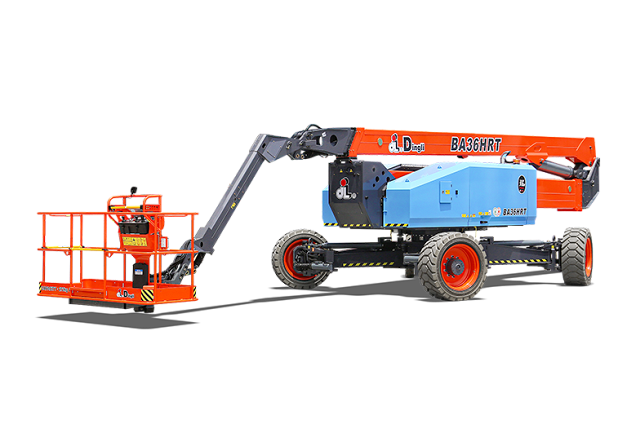

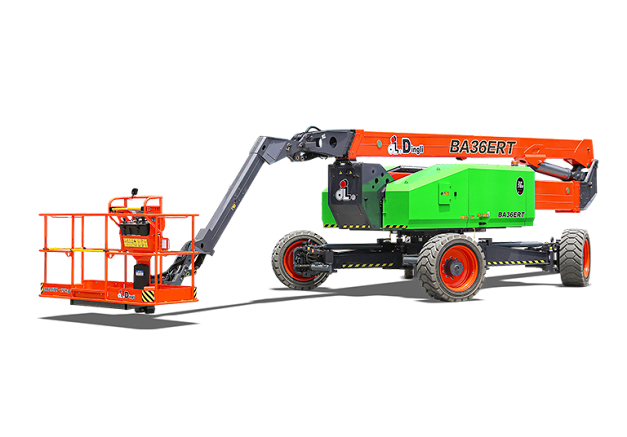

Also available in electric (BA36ERT) and hybrid (B36HRT) models.

Type:boom lift

Make:dingli

Power:Electric or Internal Combustion

Max Height:34.2 metres

Specifications

BA36RT Spec Sheet PDF

Product Images

Dingli BA36RT Modular Boom Series
Dingli BA36RT Modular Boom Series
Dingli BA36RT Modular Boom Series
