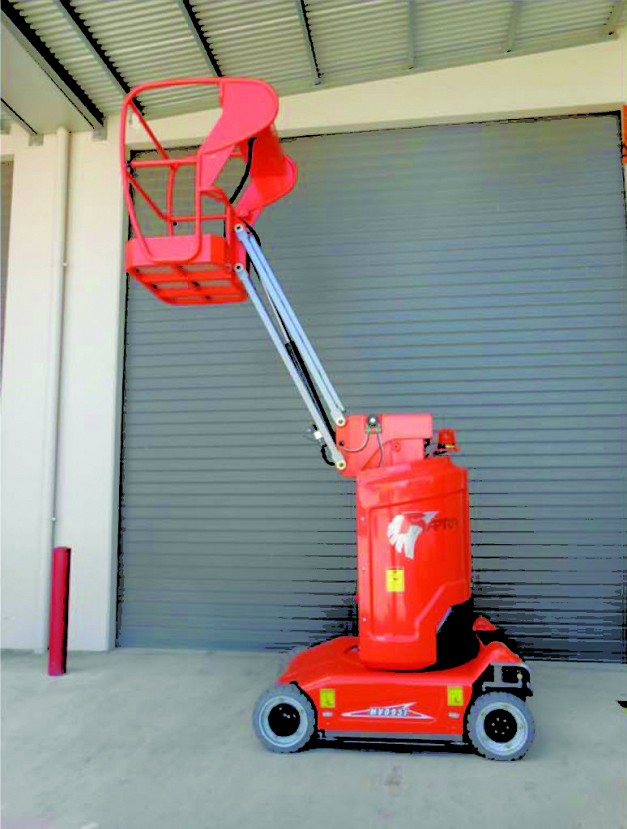

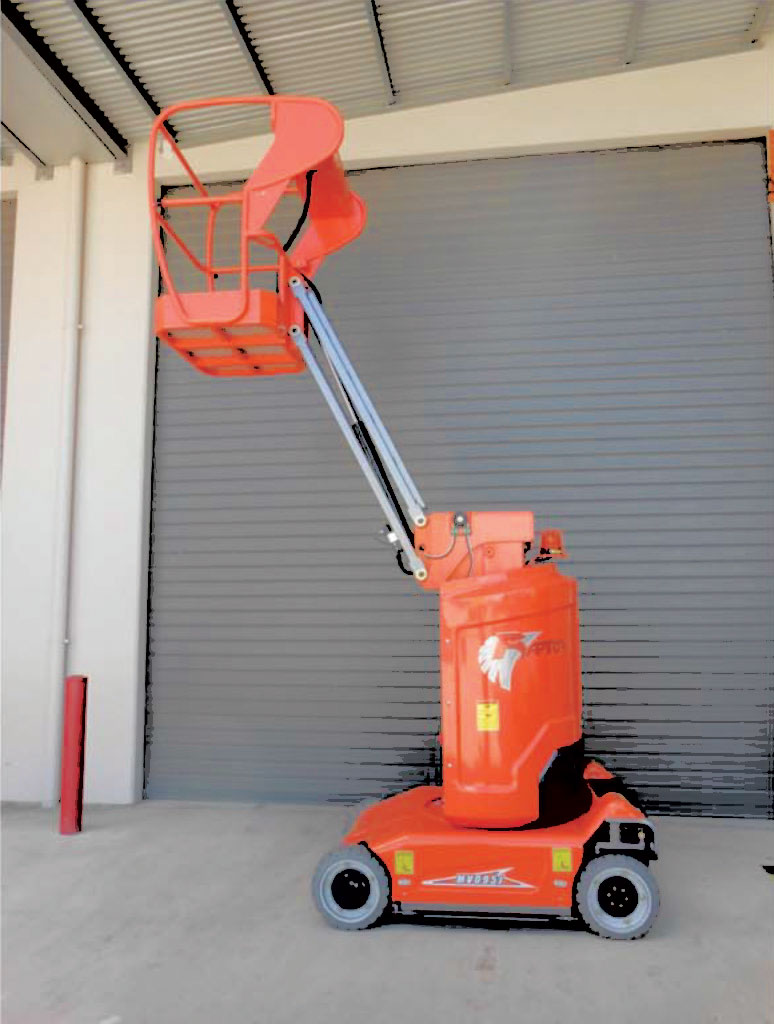

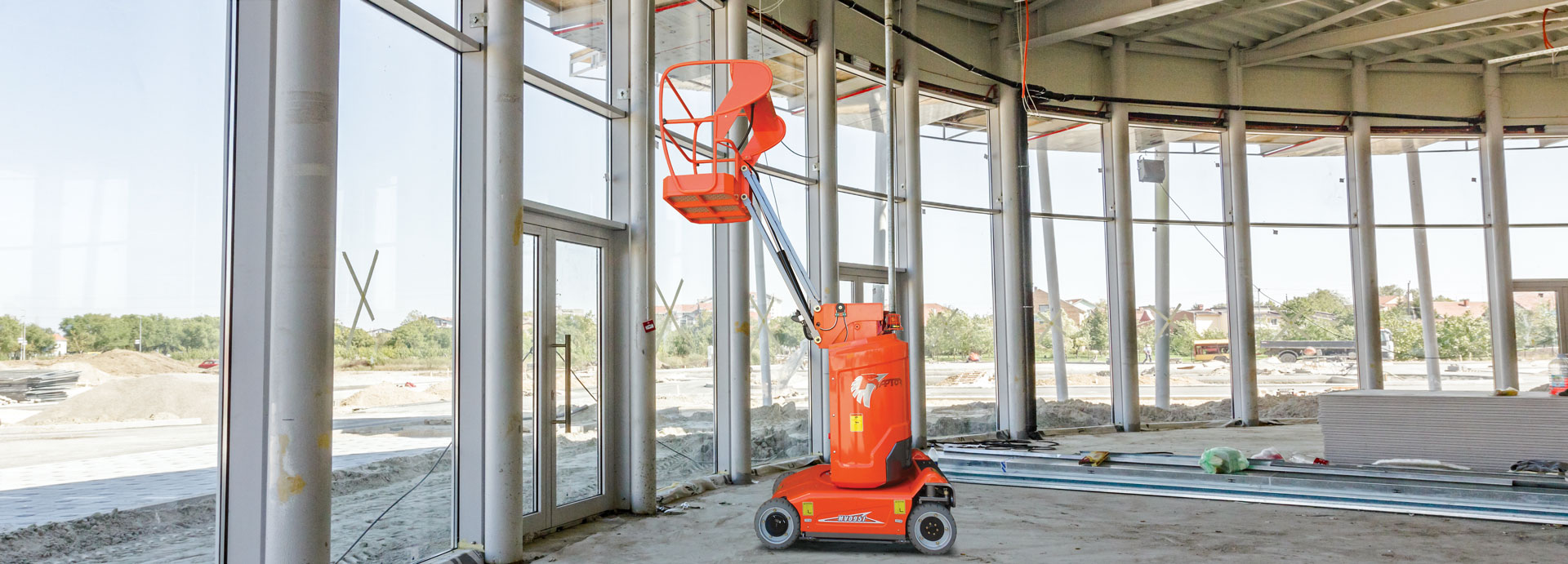

Dingli Raptor MV095J Mast Lift

Dingli Raptor MV095J Mast Lift

Type:access equipment



Max Height:9.2 metres

Self-Propelled Mast Lift

The Raptor MV095J self propeled mast lift is designed for work in extremely narrow spaces. With zero tail swing, a jib boom and work platform to get way up and over allowing for application to be completed with a minimum of fuss. Electric powered, this two wheel drive work platform reaches up to 9.2 m in the air, providing up to 11.2 m of reach and can hold up to 200 kg. Packed with a range of features the Raptor would be a great addition to any rental fleet and is also ideal for warehouse and factory maintenance.

Standard Features:

  • Proportional Controls
  • Automatic Pothole Protection
  • Self-close Gate On Platform
  • Drivable At Full Height
  • Platform Horizontal Outreach
  • Non-marking Tyres
  • 2WD
  • Automatic Brake System
  • Emergency Lowering System
  • Emergency Stop Button
  • Cylinder Holding Valve
  • Onboard Diagnostic System
  • Tilt Sensor With Alarm
  • All Motion Alarm
  • Horn
  • Hour Meter
  • Charger Protection
  • Flashing Beacon
  • Swing Out Components Cover
  • 345° Turret Rotation
  • Overload Sensor With Alarm

Available colors:

Custom Colors – enquire within

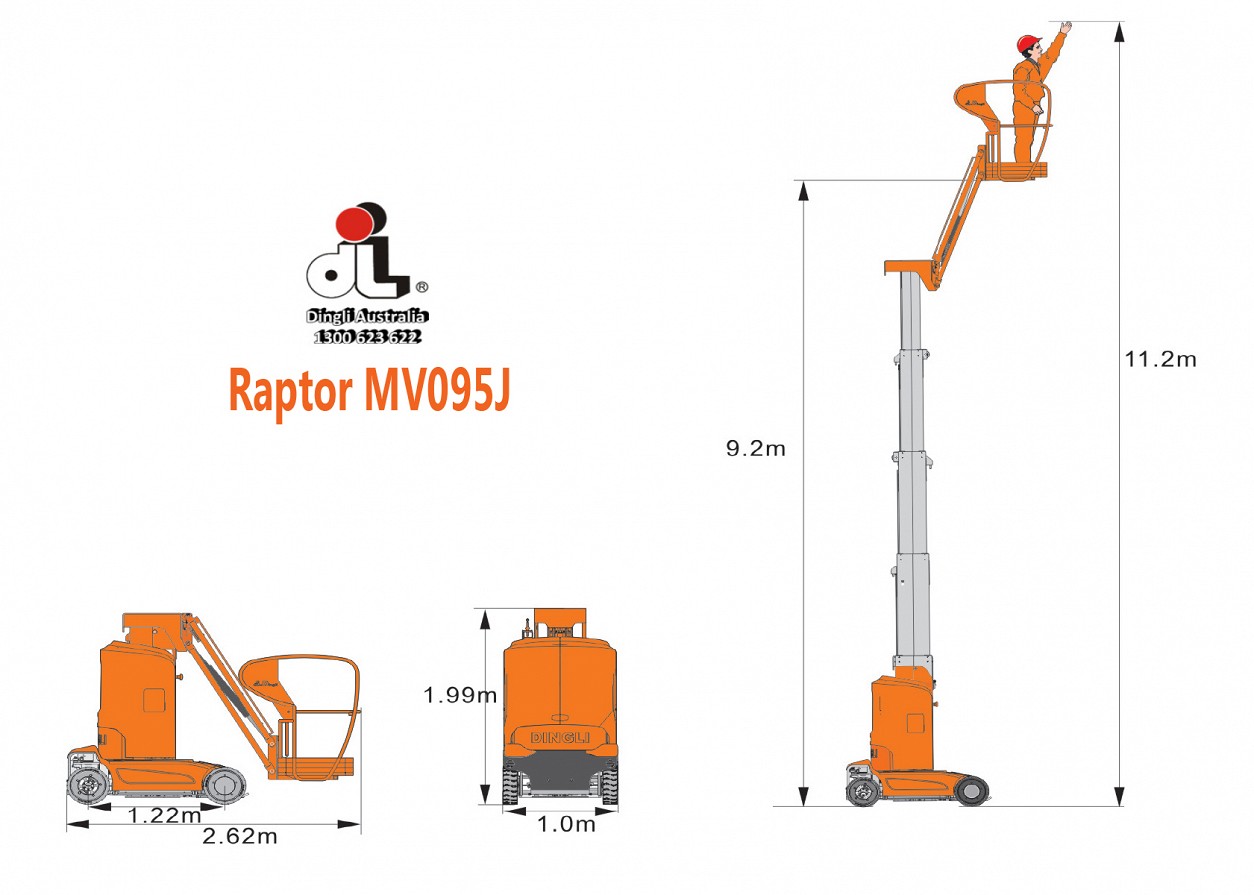

Type: Self-propelled Mast Lift
Model: Raptor MV095J
S.W.L: 200 kg
Working Height: 11.2 m
Platform Floor Height: 9.2 m
Platform Size: 0.62 × 0.87 m
Rotation: 0.62 × 0.87 m
Overall Length: 2.72 m
Overall Height: 1.99 m
Overall Width: 1.00 m
Weight: 2950 kg
