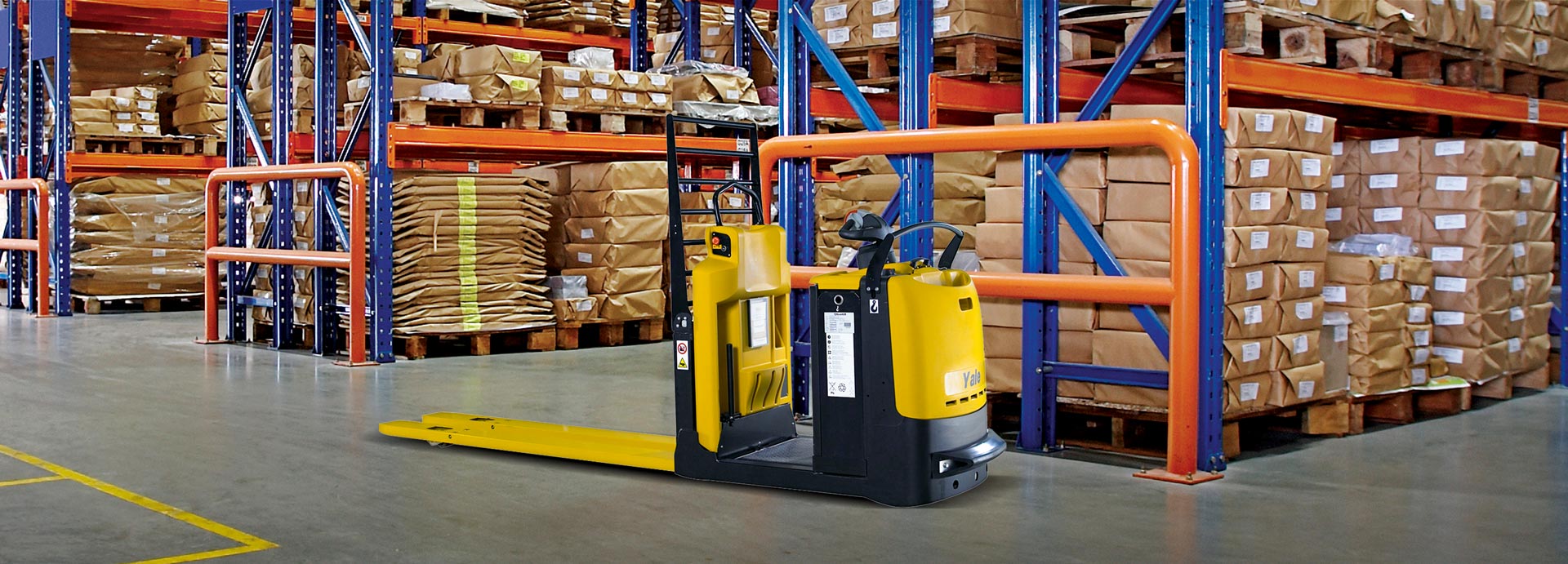

Yale MO10-25 Low Level Order Pickers

Yale MO10-25 Low Level Order Pickers
Yale MO10-25 Low Level Order Pickers

Type:order pickers

Make:yale

Power:Electric

Max Capacity:2.5 tonne

Efficient and Cost-Effective

Yale MO series of low level order pickers is one of the most efficient and cost effective solutions for the fast picking of customer orders.

Available with a fixed or lifting platform with independent fork lift for first and second level picking, the MO series also includes a scissor lift option for ground and occasional second level picking.

Ideal for cross docking and load shuttling as well as order picking in:

  • Intensive and high throughput warehouse operations
  • Horizontal transport over short and long distances

Ergonomic Features

  • Scooter control with electric steering. This allows the operator to remain within the footprint of the truck, reducing operator fatigue and ensuring them greater protection
  • Low step height reduces operator fatigue and facilitates easy crossover between racks.
  • The large suspended platform with personnel present sensor completely covers the platform.¬† This allows the operator to find their ideal¬† operating position
  • The effortless electrical steering and automatic speed reduction on cornering ensure excellent control and high productivity
  • On low level models the foot controlled platform allows second level picking to reduce operator fatigue
  • The anti-roll back system on ramps and gradients ensures efficient operation¬†

Productivity Features

  • The AC drive motor delivers high performance acceleration, travel speed and braking making the MO series ideal for stop and go applications
  • Adjustable performance settings allow the truck to be customised to the needs of the application and operator
  • Coasting and fork lift/lower function buttons located on both sides of the truck allow the operator to walk next to the operator and lift and lower the forks without being on board helping to reduce operator fatigue and increase productivity
  • Side battery extraction is available on all models provides fast and effortless battery changing for extensive shift operations

Type:order pickers

Make:yale

Power:Electric

Max Capacity:2.5 tonne

MO10L MO20 MO20P MO25
Load Capacity (kg) 1,000 2,000 2,000 2,500
Load Centre (mm) 600 1,200 1,200 1,200
Lift Height (mm) 690 120 690 120
Battery Capacity 24V / 465Ah 24V / 465Ah 24V / 465Ah 24V / 620Ah
