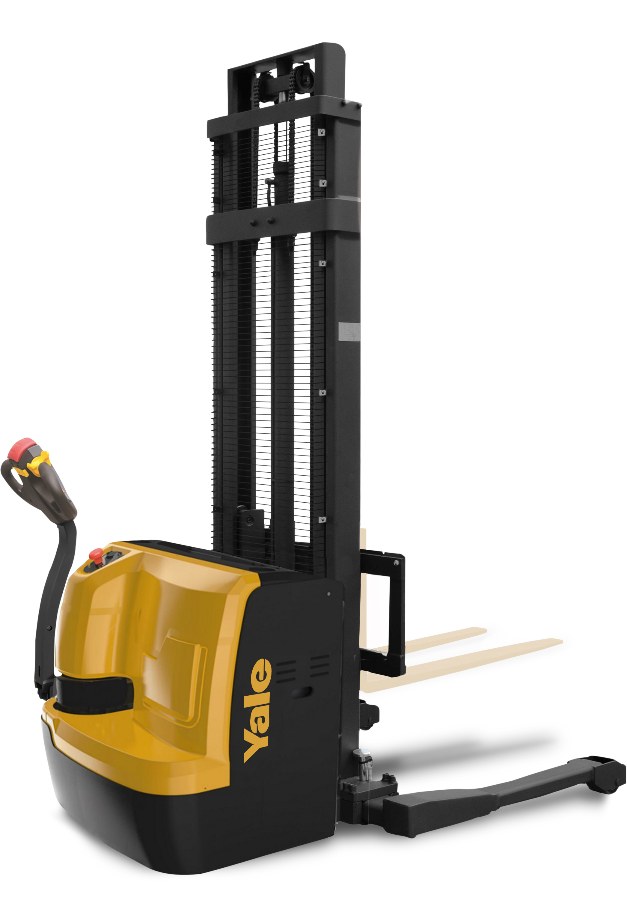

Yale MSL15WUX Walkie Stacker

The Yale® MSL15WUX electric walkie stacker is designed with productivity and flexibility in mind for the operator.

It combines operator friendly controls for easy manoeuvrability with added technology features to help users maximise their time.


  • Maintenance free AC motors
  • Multi-function display with BDI and hour meter
  • Handle equipped with emergency reversing button
  • Auto deceleration function
  • Low speed switch
  • Variable speed control
  • Sideways battery removal with rollers
  • Mast cushioning for low-noise operation
  • Built-in pressure relief valve protects from overloads
  • Emergency power disconnect switch
  • 240Ah traction battery
  • Cold storage configuration (option)
  • Narrow leg option for Australian market


  • Low voltage protection setting extends the battery life
  • CANbus technology
  • Simple electronic components makes troubleshooting and servicing more efficient
  • Hall effect sensors reduce wear and increase component life

Optimum Structural Design

  • Low centre of gravity enhances stability
  • Full free lift mast options for low overhead clearance
  • Durable plastic covers
  • Adjustable balance caster wheel improves stability
Load Capacity (kg) 1,500
Load Centre (mm) 600
Max Lift Height (mm) 5,600
Battery Voltage (V/Ah) 24 / 240

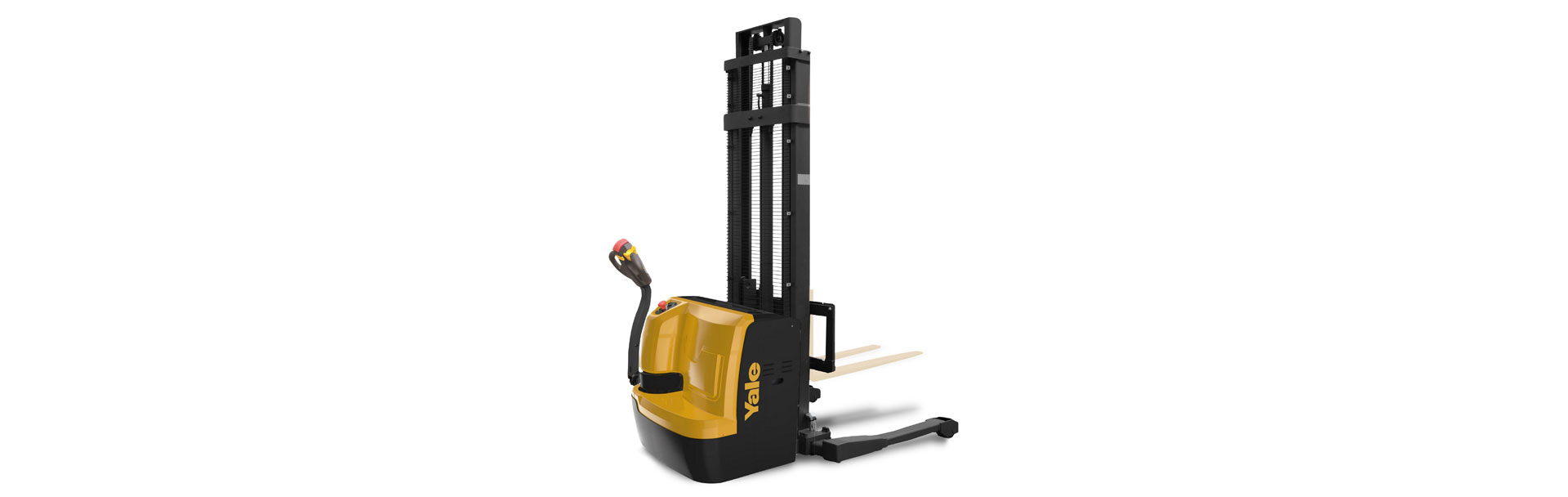

Yale MSL15WUX Walkie Stacker
