Liftsmart RT12-20 Electric Reach Stacker

The Liftsmart RT12-20 series of moveable mast fully electric mast reach truck offers lift capacities ranging from 1,200kg, 1,500kg and 2,000k with lift heights up to 5,000mm.

  • Full electric moving mast for space saving and crossing over obstacles
  • No support legs for accessing more work locations
  • Adjustable tynes
  • Floating drive system provides enhanced unladen traction when operating
  • Highly efficient 3 speed lowering
  • Lift height limitation switch stops the mast expanding beyond the maximum height to protect the motor
  • Cornering speed control automatically slows the unit when turning
  • Speed safety controls automatically decrease travel speeds to 2km/h when tynes are raised over 500mm
  • Suitable for handling euro or closed end pallets
  • Powerful AC drive motor
  • Electric power steering
  • Side pull battery replacement
  • Foldable platform and protection arms
  • Metal body cover extends component lifespan
  • Fork tilting 2o/5o forwards/backwards
  • Side-shift
  • Duplex and triplex mast options
Liftsmart RT12-20  Reach Stacker

 Request Brochure

Specifications

RT12D RT15D RT20D RT15T RT20T RT12FD RT15FD
Load Capacity (kg) 1,200 1,500 2,000 1,500 2,000 1,200 1,500
Load Centre (mm) 500 500 500 500 500 500 500
Maximum Lift Height (mm) 4,000 4,000 4,000 5,000 5,000 3,300 3,300
Mast Type Duplex Duplex Duplex Triplex Triplex Duplex Mast and Free Lift Duplex Mast and Free Lift
Battery (V/Ah) 24 / 210/270/340 24 / 210/270/340 24 / 210/270/340 24 / 210/270/340 24 / 210/270/340 24 / 210/270/340 24 / 210/270/340

Product Images

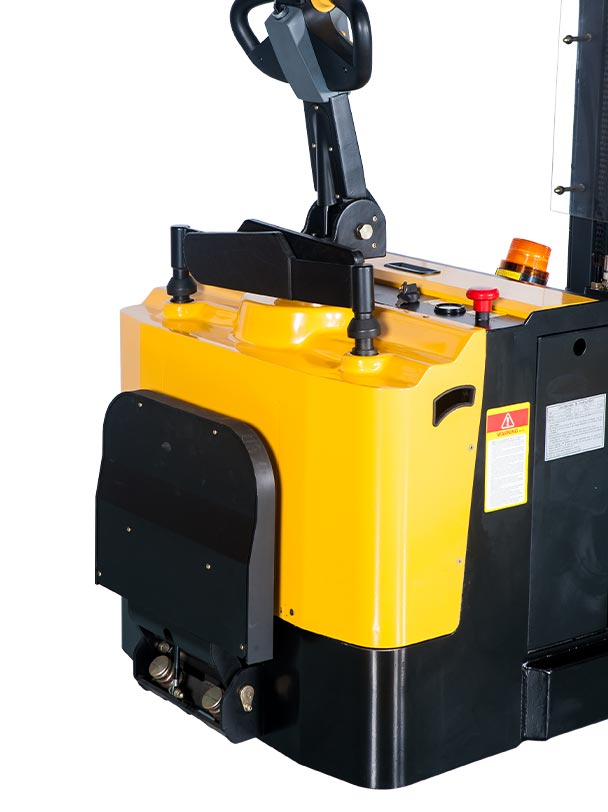

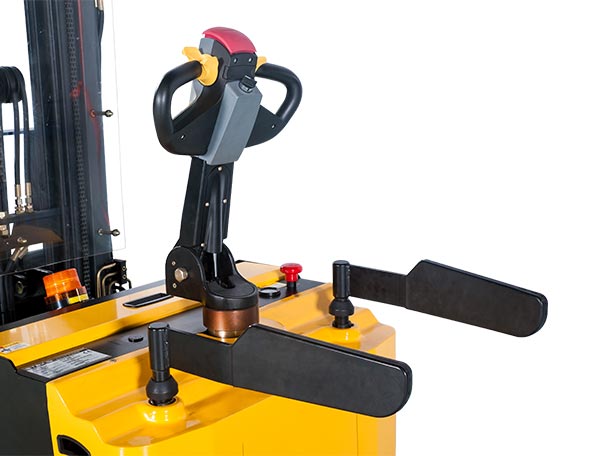

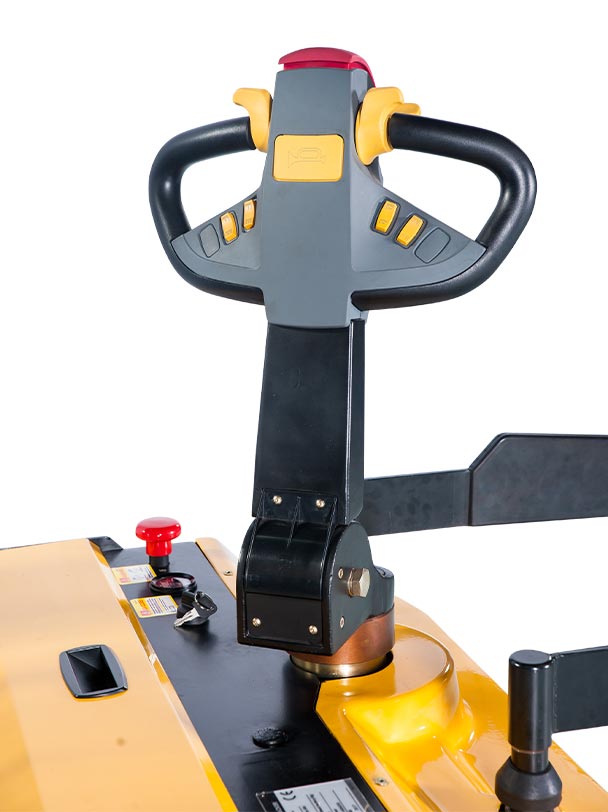

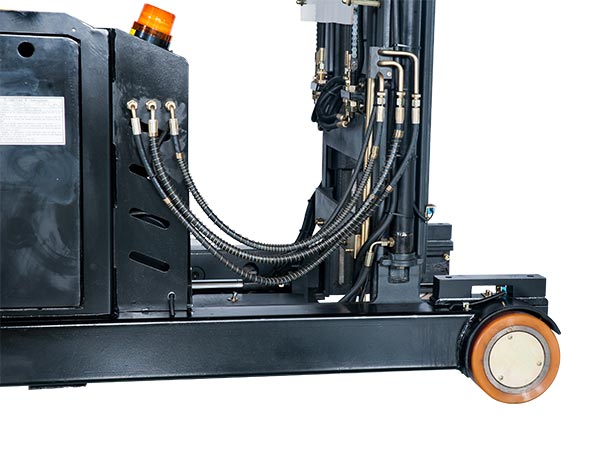

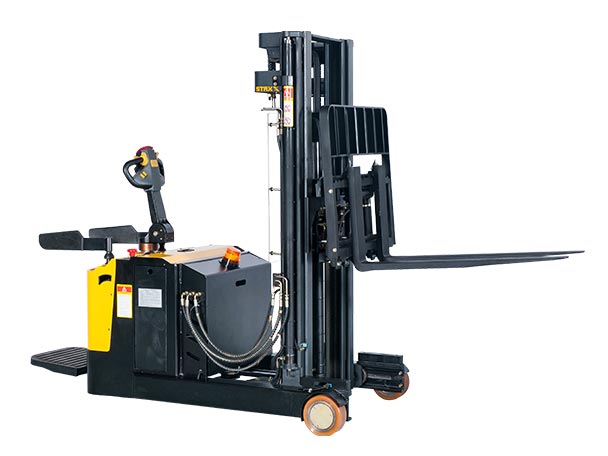

Liftsmart RT12-20 Electric Reach Stacker
