Yale ERC080-120VH Electric Cushion Tyres Counterbalanced Trucks

Yale ERC080-120VH Electric Cushion Tyres Counterbalanced Trucks

Exceptional Power

Powered by a 36-, 48- or 80- volt AC system, the ERC080-120VH electric lift truck is the solution for a variety of applications such as warehouse, retail and industrial distribution. Its advanced ergonomic design and extended battery life makes choosing a lift truck a little easier.

The ERC080-120VH can handle a capacity of 8,000-12,000 lbs., but also features optimal maneuverability and speed. Often considered the “operator’s truck,” the electric truck comes with a five position tilt steering column and self-adjustable duo-servo hydraulic brakes that lessen pedal effort, reducing operator fatigue and improving up-time.

  • The ERC080-120VH electric truck delivers maximum performance for demanding applications that require clean, quiet-running, heavy-duty capacity.
  • With maximized visibility, smooth, precise mast positioning, low-effort steering, and “human-engineered” operating controls, everything about these forklift trucks makes them easy to operate.
  • The rear-opening, one-piece steel hood and the on-board diagnostics are designed with serviceability in mind and outstanding component access makes servicing fast, easy, and convenient.
  • The highly efficient design of the ERC-VH improves battery shift life, saving dollars in energy costs, as well as increasing productivity through improved uptime.
  • Manual hydraulic levers & easy-operating optional AccuTouch e-hydraulic mini-levers & armrest give contoured, soft-touch surfaces, thumb actuated direction selection and seat-side power disconnect.

Type:standard forklift

Make:yale

Power:Electric

Max Capacity:5.4 tonne

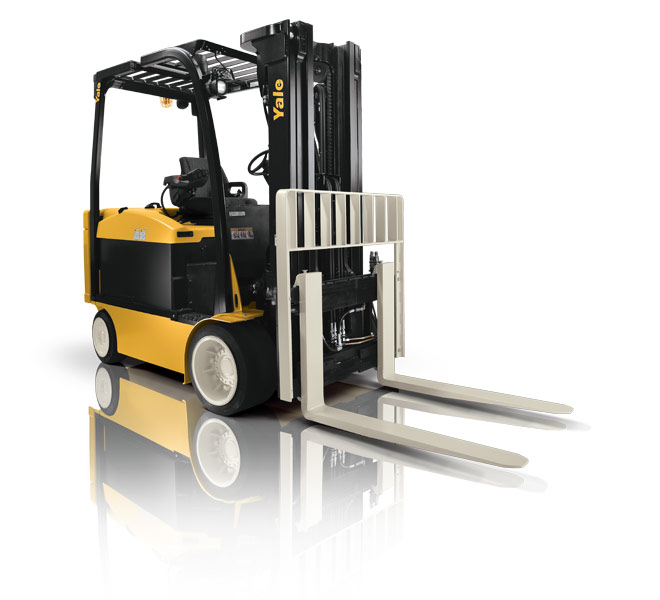

ERC080 120VH 4 Wheel Electric Main op
ERC080VH ERC100VHS ERC100VH ERC120VH
Load Capacity (kg) 3,629 4,536 4,536 5,443
Load Centre (mm) 610 610 610 610
Max Lift Height (mm) 5,550 5,290 5,290 5,290
Battery Capcity 36V / 48V / 80V 36V / 48V / 80V 36V / 48V / 80V 36V / 48V / 80V
