Yale GP20-35UX Counterbalanced Forklifts

Yale GP20-35UX Counterbalanced Forklifts

Engineered for drivers with Comfort, Safety and Ergonomics

The Yale® UX Series provides the ideal solution to meet your less frequent usage needs, without compromising on performance.

Each model is available with diesel, LPG or dual-fuel power, a single-speed powershift transmission and a range of front end equipment options to suit varying application requirements.

Easy to Operate

  • The ergonomically designed operator compartment, with a familiar automotive layout, means that drivers will be able to work comfortably.
  • A range of standard features and options help to ensure that the truck is configured to the needs of the application.

Comfort

  • Yale special display with 3.5” LCD
  • Large foot room on floor plate
  • Dual suspension system
  • Hand parking brake lever with button greatly reduces fatigue in operation
  • Small diameter steering wheel with adjustable steering column

Safety and Stability

  • Wide view mast
  • High strength overhead guard
  • Muffler and engine protective system
  • Low centre of gravity

Easy Maintenance

  • Large access area for service and repairs
  • Simple components
  • Computer-based diagnostics not required

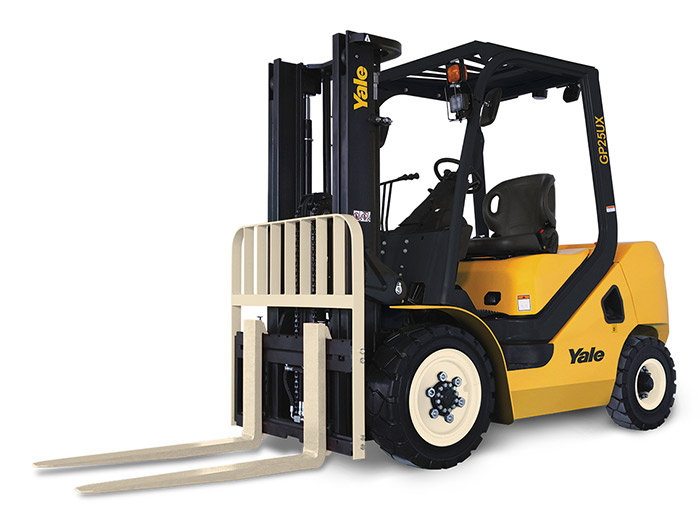

YALE GP20 35UX 700x522

Serviceability

  • Due to the simplicity of the components and specifications, servicing can be carried out quickly and easily.

Low Cost of Ownership

  • The use of high quality, robust components, efficient filtration and excellent cooling helps contribute to reliable operations and lower wear and tear. This, together with the fast availability of cost-effective replacement parts helps to reduce service and maintenance requirements and costs. The Yale® UX Series provides the ideal solution to meet your less frequent usage needs, without compromising on performance.

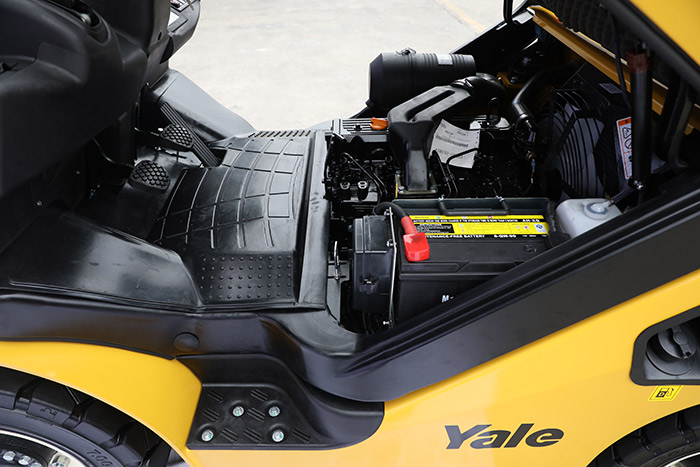

YALE GP ENGINE 700x467
GDP20UX GDP25UX GDP30UX GDP35UX
Load Capacity (kg) 2,000 2,500 3,000 3,500
Load Centre (mm) 500 500 500 500
Lift Height (mm) 3,000 3,000 3,000 3,000
Engine Type Yanmar 2.6L / GCT K21 Yanmar 2.6L / GCT K25 Yanmar 3.0L / Yanmar 3.3L / GCT K21 / GCT K25 Yanmar 3.0L / Yanmar 3.3L / GCT K21 / GCT K25
