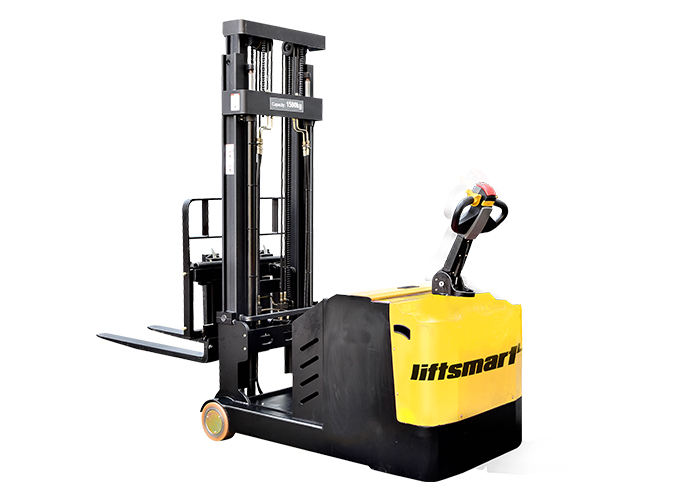

Liftsmart CB12-15

Liftsmart CB12-15
Liftsmart CB12-15
Liftsmart CB12-15

Type:pedestrian pallet trucks

Make:liftsmart

Power:Electric

Max Capacity:1.5 tonne

Max Height:4.5 metres

  • Simple and reliable 3 point frame structure
  • Easy and comfortable to operate with EPS steering, compact body and a floating design that greatly enhances manoeuvrability in confined spaces
  • Redesigned third mast roller provides clear visibility for the operator
  • Three speed settings
  • Chains manufactured by Donghua
  • Cylinders are designed to automatically buffer whilst mast is lowered, enabling safer pallet handling
  • Sliding battery box
  • Lowering of forks is 30% faster compared to previous model
  • Optional sideshift
  • Wider platform with spring shock absorbers provides a comfortable operating environment

Type:pedestrian pallet trucks

Make:liftsmart

Power:Electric

Max Capacity:1.5 tonne

Max Height:4.5 metres

CB12D CB15D CB12T CB15T CB12FD CB12FD
Load Capacity (kg) 1,200 1,500 1,200 1,500 1,200 1,500
Load Centre (mm) 600 600 600 600 600 600
Max Lift Height (mm) 4,000 4,800 4,000 4,800 4,000 4,800
Battery Capacity 24V / 210 / 280 / 340Ah 24V / 210 / 280 / 340Ah 24V / 210 / 280 / 340Ah 24V / 210 / 280 / 340Ah 24V / 210 / 280 / 340Ah 24V / 210 / 280 / 340Ah
