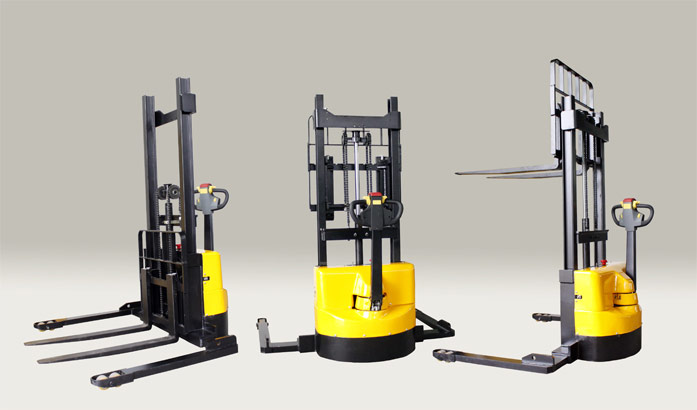

Liftsmart LS15 Series

Type:pedestrian pallet trucks



Max Capacity:1.5 tonne

Max Height:3.5 metres

Straddle Leg Electric Stacker

The Liftsmart LS15 series offers a strong, robust mast with an extension height of up to 3.3 m. The external charger has also been designed to operate with greater reliability

Ergonomic Design and Efficient Reliability

  • Mid-driving unit with 3 point standing chassis design, reducing the risk of the drive wheel slipping or losing traction
  • Ergonomically designed and built handle for comfortable operation
  • Secure dustproof design improves the life of the machine
  • Intelligent and modular control system ensures stable operation when lifting, lowering, moving and braking
  • Upper mounted handle designed for easier operation and steering
  • Wide mast provides high visibility, making lifting more precise and increasing safety
  • With the flick of a switch, automatically limit maximum travel speed when the load is higher than 0.7 m

Request brochure (PDF)

  • 1500 kg Medium duty Straddle Leg Electric Stacker
  • Lifting Height: 3500 mm
  • AC Drive, middle drive section
  • Adjustable forks and fork length 1070 mm
  • Load backrest height 840 mm, load guard uprights distance 150 mm
  • With Pressure compensating relief control valve
  • With Wire screen
  • With 100Ah AGM Battery & Separate Charger

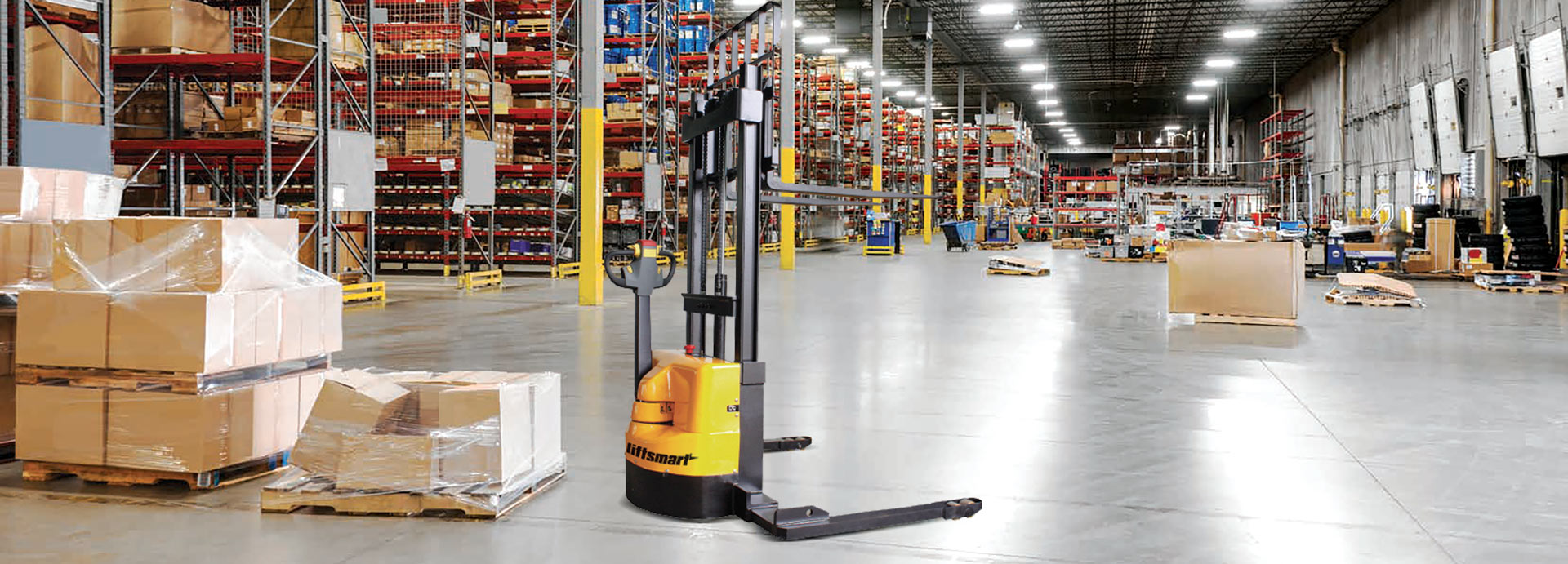

product action shot
product action shot
