Forklift Tyne Guide

by Paul Hinz
Filed under: Forklifts

Forklift forks often referred to as tynes (tines) are an integral part of every forklift.

They are used to support, lift and carry all loads.

Ensuring that your forklifts tynes are in good condition and correctly rated to lift a desired load is integral to worker safety.

In this guide we explain common tyne terminology, discuss the different types of tynes available and provide some operating safety tips.

Common Forklift Tyne Terminology

The diagram below labels and defines the parts of a forklift tyne.

  • Blade: the horizontal part of the tyne that supports and lifts the load
  • Tip: the end of the tyne blade that is inserted into the pallet when lifting a load
  • Shank: the vertical part of the tyne
  • Heel: the intersection point of the blade and shank
  • Hook: hooks attached to the shank that support the tynes on the forklift
  • Locking Pins: positioned on the top of the hooks, used to position and secure the tynes to the forklift carriage
  • Taper: the difference in tyne thickness from the heel (thickest part) to the tip (thinnest part)
211112 Blog Tynes 1

How to Read Forklift Tyne Dimensions

Forklift tyne dimensions are normally provided as width (W) x thickness (T) x length (L) alongside their class.

A tynes class is determined by combining the class of forklift truck and the fork drop.

The diagram below shows the main dimensions of forklift tynes.

  • Carriage Plate Height ©: tynes are mounted on a forklift carriage
  • Fork Drop (D): measurement from the top of the lower hook to the floor
  • Length of fork (L): measurement from the end of the tip to the shank. Length can be given in mm or inches – common lengths are 1,219mm, 1,829mm and 2,438mm
  • Width (W): width measurement from the widest point of the tyne
  • Thickness (T): measurement of the thickness of the tyne shank
  • Spread: measurement of the width between the tynes from outside edge to outside edge
211112 Blog Tynes 2

Types of Forklift Tynes

Forklift tynes are most commonly manufactured out of tough steel, this is used due to its toughness and how they maintain high tensile strength during forging.

Some of the most common types of forklift tynes are described below.

Hook Tynes

The most common mounting method for tynes is via hook.

The tynes are slid onto the forklift carriage sideways and are locked in place with a spring loaded pin.

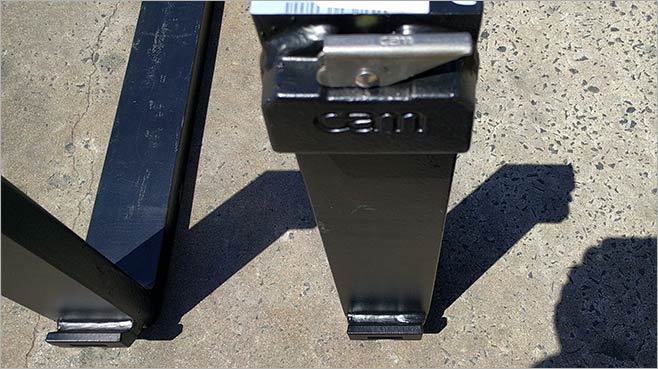

05 lockdamage

Pin Type & Bar Type

The tynes have a guide and are attached to a shaft.

Often found on larger high capacity forklifts and construction machines such as telehandlers.

Drum Handling Tynes

Tynes that have a section cut out of the side of the forks to enable a drum to be lifted.

Coil Handling Tynes

Inside edge of the tynes are “chamfered” to provide a surface for the coil to sit on.

Explosion Proof

For forklifts that are being operated in explosive environments then the tynes are clad in stainless steel to prevent sparking.

Food and Beverage Industry

Forklifts that are used in the food industry are typically clad in stainless steel as they are regularly washed down to maintain cleanliness to adhere to strict hygiene standards.

Lumber Tynes

Tynes that have a thin and wide blade for ease when inserting into loads of timber lengths.

Forklift Tyne Safety Tips

Below are some common safety tips to ensure your forklift tynes are in good condition to properly support and safely lift full loads.

Visual Inspections

At the beginning of a shift or before use conduct a visual inspection

  • Check for any tyne damage
  • Make sure the tynes are in the correct position and secured with their locking pins
  • Inspect for wear at the heel of the fork – if the original thickness has been worn by 10% or more do not use the tynes as they need to be replaced (At 10% of wear a tynes load capacity is reduced by 20%)

Know Your Tynes Rated Capacity

Make sure the load you are attempting to lift is within the forklift and its tynes safe rated capacity.

Do not attempt to overload a forklift as this can adversely affect the units stability and lead to serious injury or fatality were it to tip over.

Ensure Load Weight is Distributed Evenly

Always insert and use both tynes to lift a load, distributing weight unevenly over an individual tyne can negatively affect a forklifts stability heightening the chances of it tipping over sideways and causing injury or damage to the load.

It is also imperative that the load sits flush up against the forklift backrest again to enhance stability and not have the forklift tip forwards.

Do Not Transport People

Tynes are designed to safely lift palletised and similar loads, they must NOT be used to transport people

Only Use Qualified Service Technicians

For all tyne servicing, repair, replacements or modifications must be completed by a trained and experience forklift service technician.

Maintain Tyne Integrity

Do not weld or drill any holes into tynes as this will weaken their structural integrity increasing the chances they will break under the weight of a load.

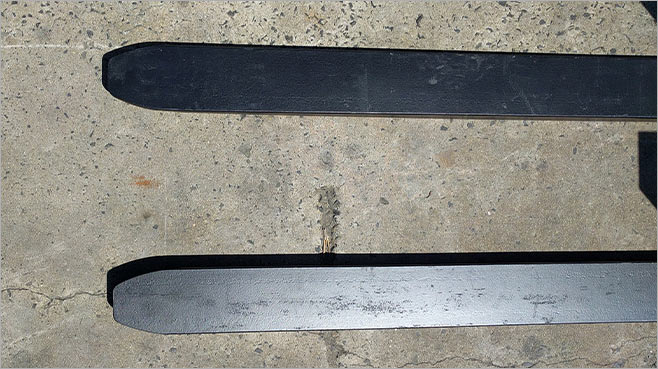

01 surface cracks

In this week’s we’ve provided described the common terminology of forklift tynes and some of the different types of tynes available whilst also providing some tyne safety tips.
